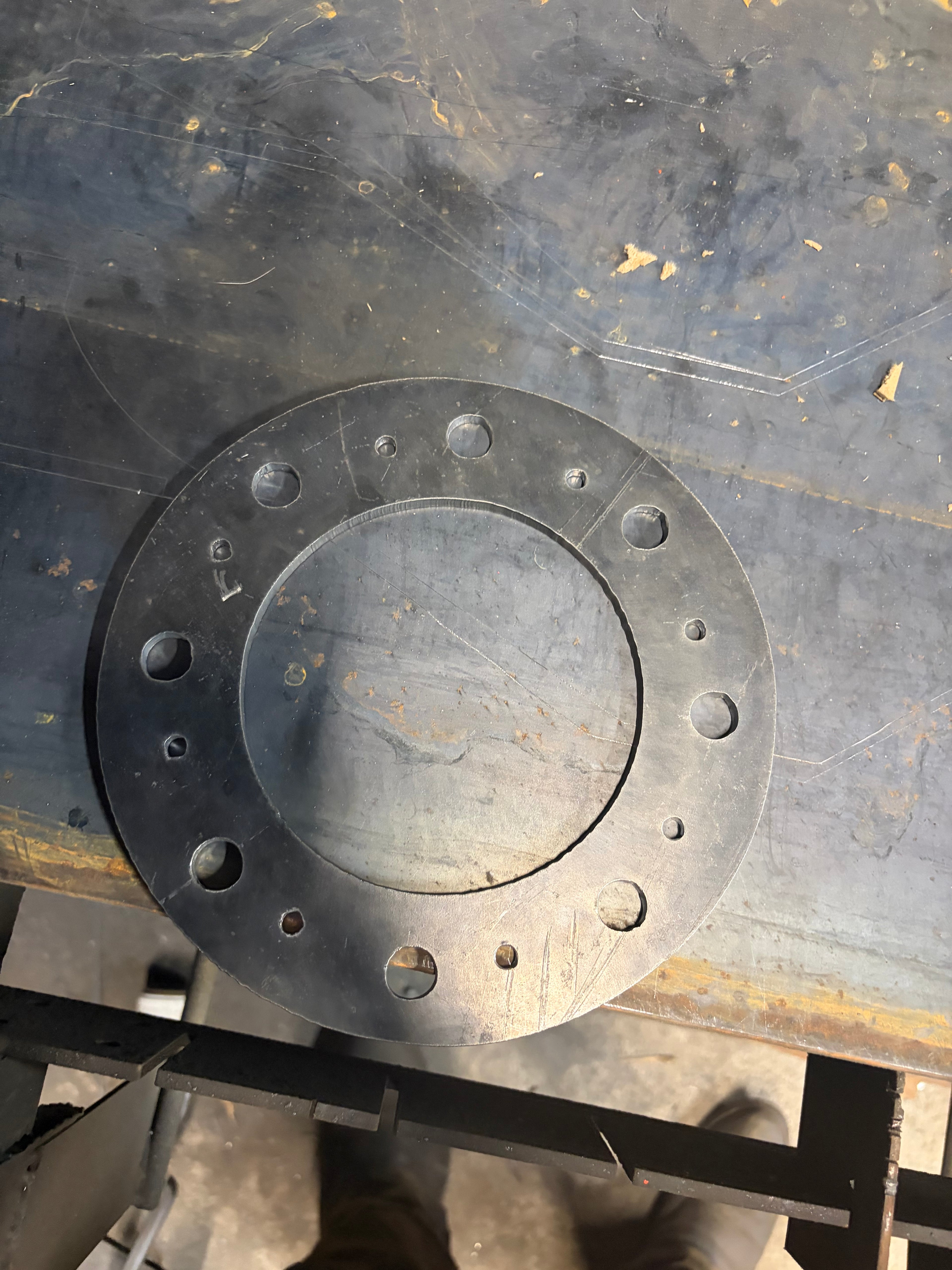

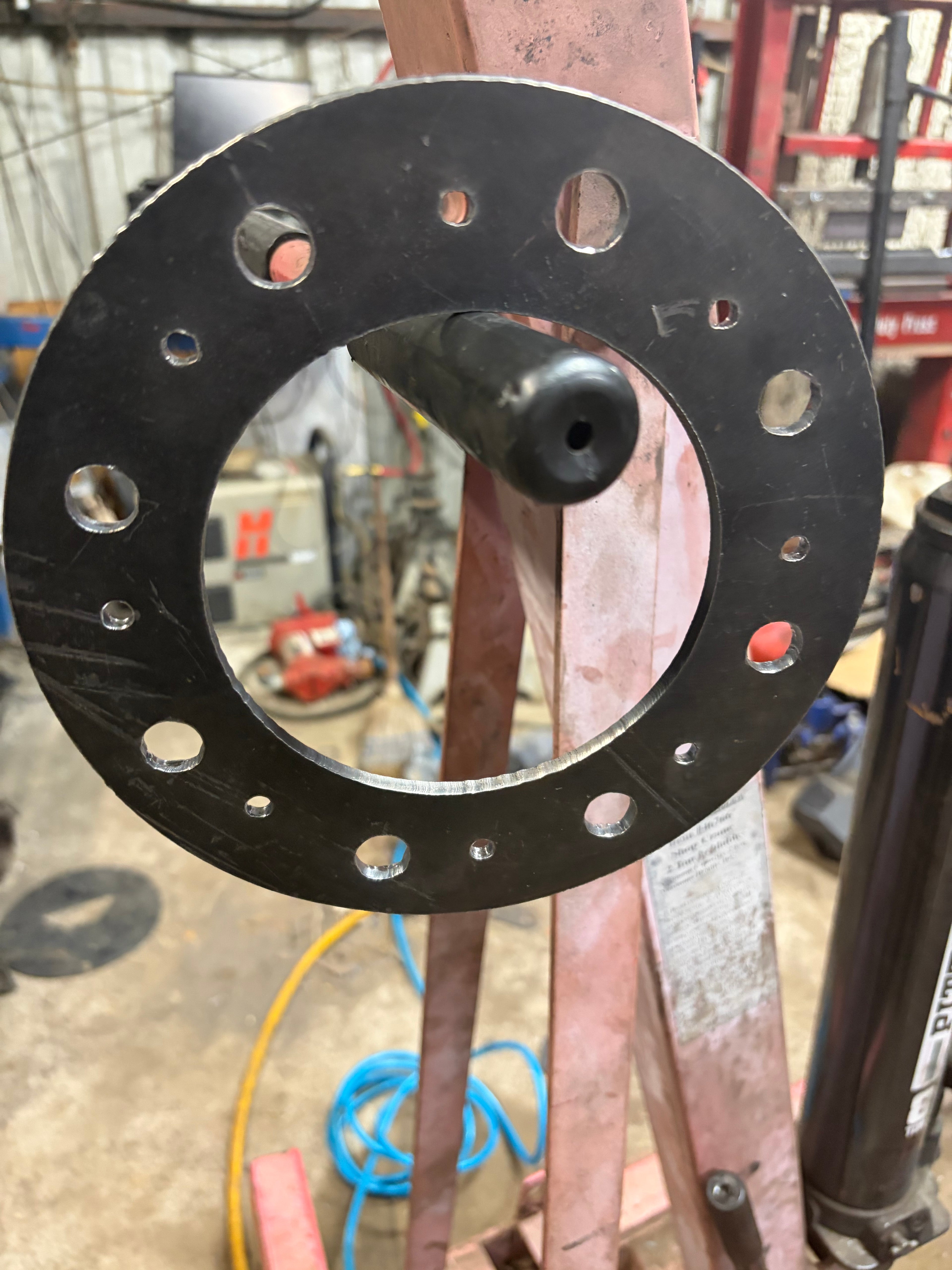

Super Duty Dana 60 — 8×6.5 Lug Conversion Drill Jig

Stop guessing and start drilling with confidence. This precision-machined drill jig makes converting your Super Duty Dana 60 from 8×170 to 8×6.5 straightforward, repeatable, and clean — every time.

How It Works

• Step 1 — Pilot drill: Bolt the jig securely onto your stock studs and pre-drill all holes with a 1/4″ bit.
• Step 2 — Finish drill the hub: Remove the jig and finish each hole with a 19/32″ bit to complete the unit bearing conversion.
• Step 3 — Press studs: Press out the original wheel studs and install them into the new 8×6.5 locations.
• Step 4 — Modify rotors: No jig needed here — simply use a 13/16″ bit to open up the existing rotor holes. The hub-centric design keeps everything centered on the unit bearing.

Why This Jig

• Built to last and fully reusable — not a one-and-done tool
• Precision fit eliminates guesswork and misaligned holes
• Saves time and money vs. sending hubs out for machining
